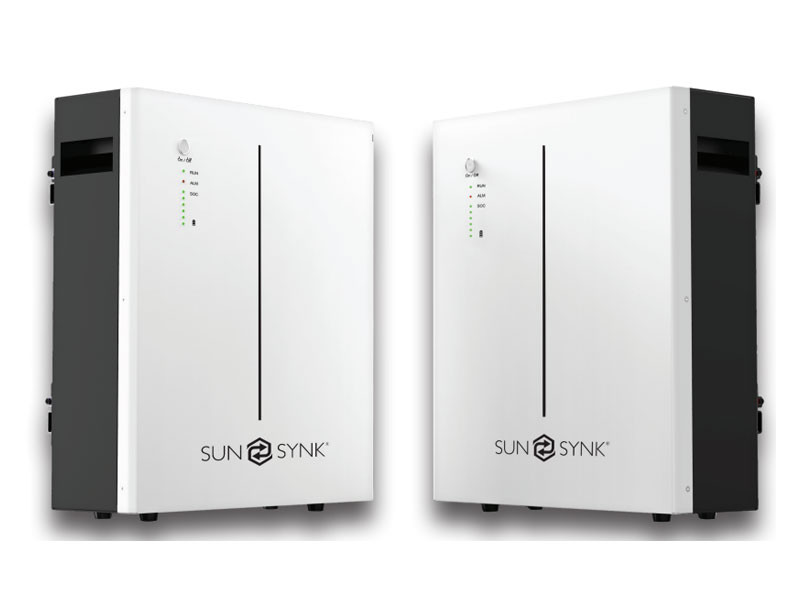

Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V

The Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 10.65kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.

Sunsynk have produced a perfect storage solution. The module consists of Lithium Ion phosphate rechargeable batteries with 10.65kWh capacity rated at 51.2V 208Ah with a built-in battery management system.

The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).

Lithium Ion Phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.

Benefits & Advantages

1. High Usable Capacity
   Supports a full 100 % Depth of Discharge due to LFP chemistry—delivers the full 10.65 kWh without reducing cell health.

2. Longevity
   Rated for ~6 000 cycles at 80 % DoD—translates to over a decade of daily cycling.

3. Powerful Output
   Supports 10 kW peak charge/discharge—ideal for heavy-duty loads like geysers or EV chargers.

4. Scalable System
   Parallel up to 8 units for flexible expansion (up to ~85 kWh).

5. Safety First
   LFP cells are thermally stable and less prone to thermal runaway; advanced BMS enhances protections.

6. Efficient Installation
   Compact size and wall/floor-mounted flexibility reduce footprint and installation cost.

7. Robust Certifications
   Meets key international safety standards (UN38.3, IEC, UL).

Technical Specifications

 Packaging Details

While exact packaging dimensions aren't explicitly published, assuming the internal dimensions match the battery and allowing for insulating & protective material:

• Estimated box dimensions: ~600 × 220 × 900 mm

• Total gross weight: Approx. 95–100 kg

Compatibility with Popular Inverters in South Africa

This battery is noted as “perfectly compatible with Major Brands” including:

• SolarEdge, Sungrow, Goodwe, Solis, Victron, LuxPower, Deye, Sunsynk Hybrid Inverters

Given its 51.2 V system and CAN/RS232/RS485 support, it pairs especially well with 48–60 V hybrid inverters, common in:

• Victron systems (e.g. Multiplus, Quattro)

• Goodwe hybrid series

• Sungrow hybrid range

• Solis/Sunsynk hybrid inverters

Key Advantages for South African Users

• Depth-of-discharge & cycle life means long-term reliability—even in load-shedding heavy areas.

• High discharge power supports high-demand appliances and off-grid needs.

• Modular design suits future expansion if your energy needs grow.

Using Sunsynk batteries with your new Sunsynk inverter extends the inverter warranty to 10 years.
